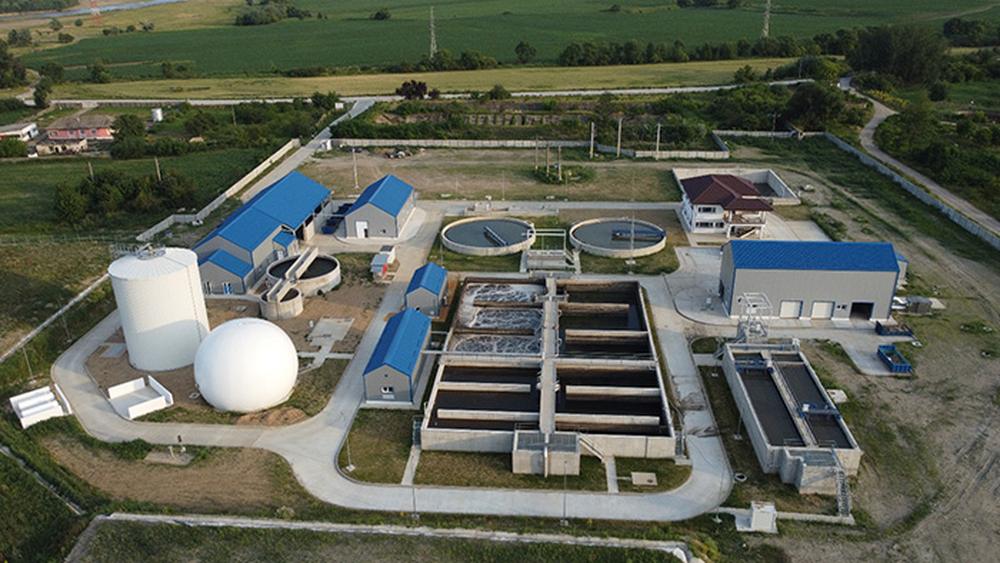

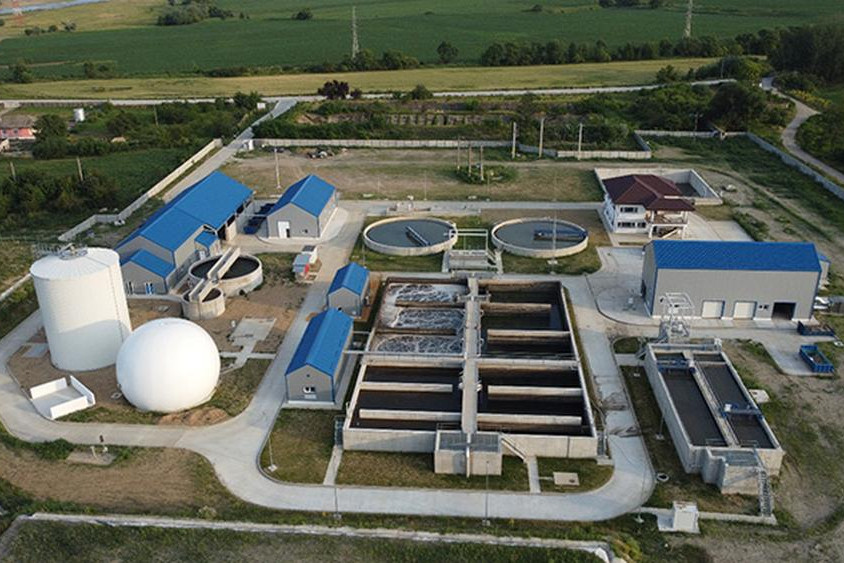

Ecoapa Design - New water intake and treatment facilities

CL-03 – Onești – New water intake and treatment facilities, adduction, and rehabilitation of existing storage facilities in Onești Municipality.

Value43,194,947.33 RON, excluding VAT.ContractorOCSA Construcții și Infrastructură SRLGeneral DesignerSC Ecoapa Design SRLBeneficiarySC Raja SA

The design works within the contract included the following items and categories of works:

Item 1 – Surface Water Intake and Treatment Station

Sub-item 1.1 – Surface water intake through screens
Sub-item 1.2 – Pre-treatment building
Sub-item 1.3 – Treatment building
Sub-item 1.4 – Treated water reservoirs and pumping station
Sub-item 1.5 – Mechanical workshop
Sub-item 1.6 – Transformer station and power supply
Sub-item 1.7 – Technological networks inside the enclosure
Sub-item 1.8 – External arrangements
Sub-item 1.9 – SCADA system including local dispatching, ICA (including for GA Cuciur, pumping stations, and monitoring points in the distribution network)

Item 2 – Drinking Water Supply Pipeline

The pipeline transports drinking water from the surface water treatment station to the connection point with the distribution system:

Length: 6,823.60 m
Material: PEID, PN10 RC, Diameter 500 mm

Item 3 – Cuciur Water Facility

Sub-item 3.1 – Drinking water storage tank – rehabilitation
Sub-item 3.2 – New chlorination station building
Sub-item 3.3 – New chlorination station installation
Sub-item 3.4 – Generator group
Sub-item 3.5 – Technological networks inside the water facility enclosure

Item 4 – Service Equipment

The surface water treatment station and the Cuciur water facility (GA) have been equipped with specific equipment for efficient operation and monitoring.
